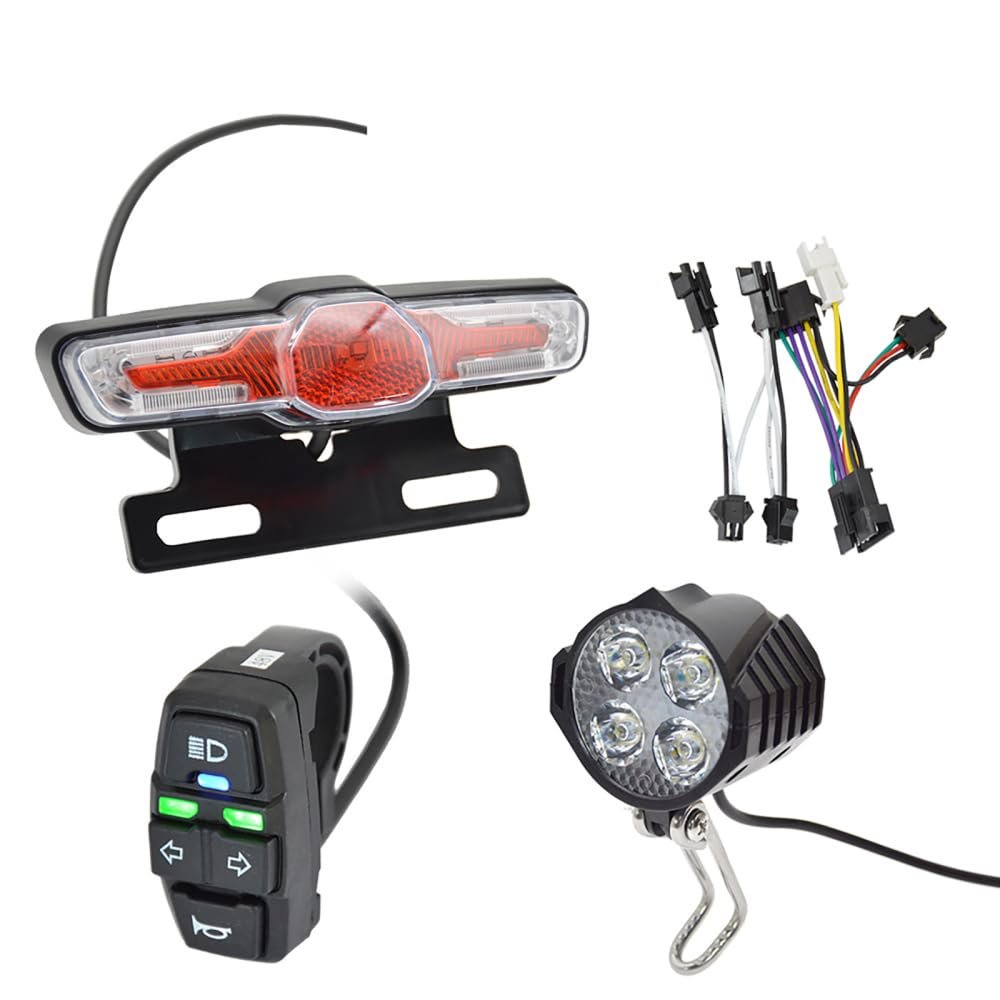

Gaderth Ebike Headlight and Tail Light Sets, LED Night Spotlight Cycling Modification Parts, 48V/36V Front Rear Warning Lights Kit with E-Bike Headlight Turn Signal Rear Light, 12V-72V Switch 24-48V

Description

• Running LightsWhen the switch of running lights is turned on, the running lights of headlights and taillights will light up.
• Brake LightWhen the brake signal line is normally connected with the controller's brake low pressure signal, the brake light will light up when braking.
• Turn Signal LightWhen the turn switch in the specified direction is toggled, the turn signal in the corresponding direction starts to work and flashes at a 800ms each time.
• HornPress down the button to activate.
• Easy to InstallDon't need to find a professional maintenance worker, you can quickly complete the replacement yourself. Super easy, fast and cost-efficient.

Description:
Name: Electric Bicycle Set
Front Light
Material: PC ABS
Product Size: Approx65mmx52mmx45mm
Light Source: LED
Light Color: Black
Lighting Distance: 40-60meters at night
Rear Light
Model: D-05DC
Size: 147 x 44 x 42mm
Applicable voltage: 48V / 36V
Rear light current: 48V/13mA, 36V/10mA
Material: ABS
Power: 0.5W
Function: rear light, brake light, turn signal
Light brightness: 15LM
Outlet: four-core wire
Waterproof grade: IPX4
Installation location: the rear of the frame
Switch:
Voltage: 12V-72V
Cable length: 1500mm/59.06in
Weight: 38.4g
Operating temperature: -20C~60C
Material: PP TPR
Wire pulling force:> 130N
Core: 8 Pins
Current: 0.5A/12V DC
Waterproof: IPX4
Red button: Bicycle light
Green button: Bicycle Horn
Installation diameter: 22.2mm
Function: Control horn and light ON/OFF
hint:
1. This product is not suitable for Bafang or TSDZ mid-mounted motors.
2. This product needs to be connected to the same battery as the controller, otherwise the braking function cannot be activated.
3. Connecting to the brake requires the controller to be a low-speed brake.
Packing list:
1 x Electric Bicycle Front Rear Warning Lights Set
Note:
Different displays may cause the color of the item in the picture a little different from the real thing.
Manual measuring,please allow 1~3mm error,thank you.
